Features - Original 2012 Product Launch (1st Gen.)

• High / Low Power Settings (4W/1W) Programmable Amateur Radio

• Frequency Range: 65-108 MHz (Only commercial FM radio reception) VHF: 136-174 MHz(Rx/Tx). UHF: 400-520 MHz(Rx/Tx)

• Customize Channel Names, the Boot Display and More by Using the PC03 FTDI Programming Cable
• 1500mAh Battery (1800mAh Label); Broadband (Wide) 25khz / Narrowband (Narrow) 12.5khz Selectable

• AUTO Keypad Lock, Dual Band, Dual Display and Dual Standby

Features - Updated Late 2013 ProducT Launch (2ND Gen.)

Radio Frequency IC:

• Upgraded SQ to enhance the anti-interference ability
• RDA1846S adds an new tail tone elimination function, when transmitting and receiving signal between 50Hz with 55Hz
• Improves the receiver AGV switching noise when signal strength changes severe

Frequency-Modulated Receiver Chip:

• The RDA5802N has a powerful low-IF digital audio processor, which makes it have the most optimum sound quality with varying reception conditions

Power Amplifier IC :

• Low crossover distortion
• Low quiescent circuit current

N5R Firmware (August 2014)

• Hold '0' - Display Voltage
• Removes Cloning Capabilities (Due to Several Firmware Edits)

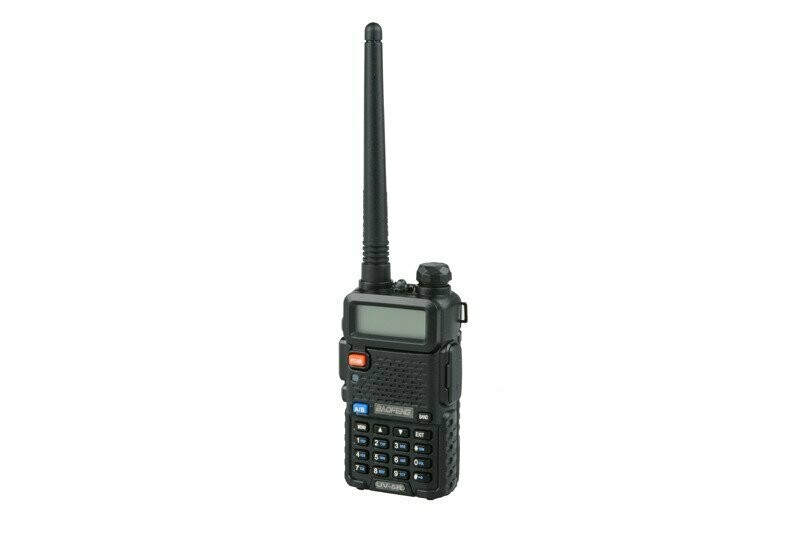

The BaoFeng UV-5R is legal for use on amateur frequencies. The UV-5R is able to Transmit on Narrowband (12.5kHz) and Wideband (25kHz).

The BaoFeng UV-5R has one built-in receiver but can "watch" two channels (semi duplex). Monitor two different frequencies (even on different bands (VHF/UHF)) and the radio will monitor both frequencies giving priority to the first station to receive an incoming call.

You can listen to the FM Broadcast radio, while still monitoring your radio frequencies in the background. Any incoming call will be given priority insuring you never miss an important call while listening to the radio.

The BaoFeng UV-5R supports the most common Analog Tones. It supports CTCSS, DCS, and DTMF calling methods. Set-up your calling methods to call by group tones. Tone calling (private line) is required by most repeater applications and the UV-5R supports the latest standards

The BaoFeng UV-5R can even send DTMF tones. This allows for sending ANI (Caller ID) or remote commands that require DTMF tones
